Zeichensatz UTF-8+Z1013()+CTRL()-ohne Umlaute(äöüß)
10 DIM AR(20),B1(20),C2(20),R1(20),R2(20)
40 WINDOW:CLS:PRINT:PRINT
41 PRINT " "
42 PRINT " A Game by"
43 PRINT " "
44 PRINT " "
45 PRINT " "
46 PRINT " "
47 PRINT " "
48 PRINT " "
49 PRINT " Suhl c.1988"
50 PRINT " "
51 PRINT:PRINT
70 PRINT "Berechnungen der Elektrotechnik"
75 PRINT ""
80 PRINT " 1..Filter"
85 PRINT " 2..Belasteter Spannungsteiler"
90 PRINT " 3..Schwingkreis"
95 PRINT " 4..Transistor"
100 PRINT " 5..Vierpol"
102 PRINT " 6..Ungeregelte Netzteile"
103 PRINT " 7..Operationsverstaerker"
104 PRINT " 8..Passive Filter"
105 PRINT " 9..Aktive Filter"
106 PRINT:PRINT:PRINT
110 INPUT "AUSWAHL";A
115 IF A<1 OR A>9 THEN 40
120 ON A GOSUB 130,475,655,910,1195,2000,3000,4000,5100
125 A$=INKEY$:IF A$=""THEN 125:ELSE 40
130 REM FILTERBERECHNUNG
135 WINDOW:CLS
140 PRINT AT(10,7);"SELEKTIVES FILTER"
145 PRINT AT(11,14);"mit"
150 PRINT AT(12,5);"Mehrfachgegenkopplung"
155 PRINT AT(14,5);">>>>>>>>>>+<<<<<<<<<<"
160 PAUSE 50:CLS
165 PRINT
170 PRINT " "
175 PRINT " "
180 PRINT " C R2 "
185 PRINT " "
190 PRINT " R1 "
195 PRINT " "
200 PRINT " o o"
205 PRINT " C "
210 PRINT "Ue Ua"
215 PRINT " "
220 PRINT " o o"
225 PRINT " R3 "
230 PRINT " "
235 PRINT " "
240 PRINT " "
245 PRINT

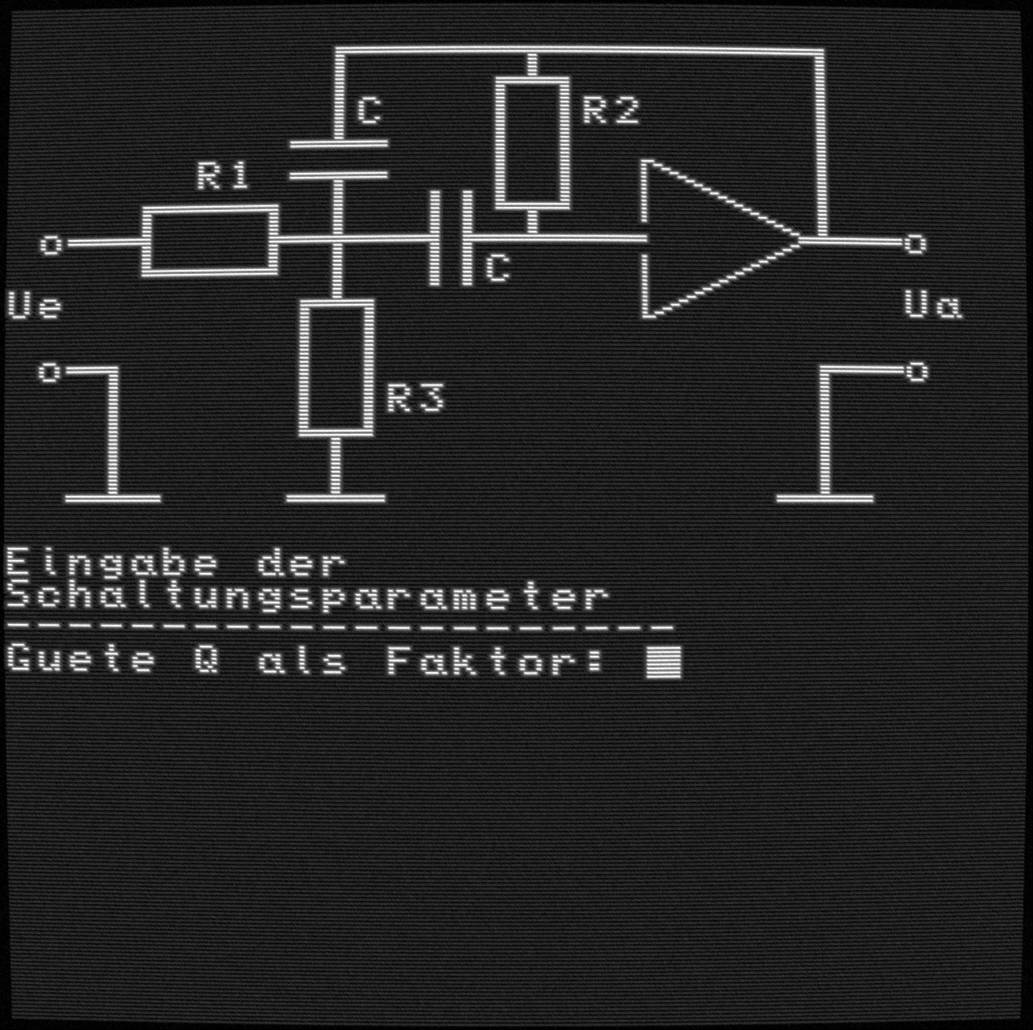

250 PRINT AT(7,24);CHR$(151)
255 WINDOW 17,31,0,31
260 PRINT "Eingabe der"
265 PRINT "Schaltungsparameter"
270 PRINT "---------------------"
275 INPUT "Guete Q als Faktor:";Q
280 INPUT "Resonanzfrequenz Fo:";FO
285 INPUT "Verstaerkung in Resonanz Vr:";VR
290 INPUT "Leerlaufverst.des OPV Vl:";VL
295 INPUT "Kondensatoren C:";C
300 CLS
305 R2=Q/(PI*FO*C)
310 R1=R2/(2*VR)
315 R3=R1/((4*PI*PI*C*C*FO*FO*R1*R2)):!*-1
320 IF VL<(5*Q*Q) THEN 350
325 PRINT "R1=";R1
330 PRINT "R2=";R2
335 PRINT "R3=";R3
340 PRINT:PRINT "Alle Widerstandswerte in Ohm"
345 GOTO 395
350 PRINT "Leerlaufverstaerkung fuer"
355 PRINT "geforderte Guete nicht"
360 PRINT "ausreichend !"
365 A$=INKEY$:IF A$=""THEN 365
370 Q=SQR(VL/5)
375 CLS
380 PRINT:PRINT "Maximal erreichbare Guete:";INT(Q)
385 PAUSE 50:CLS
390 GOTO 260
395 PRINT:PRINT "Berechnung der Parameter"
400 PRINT "mit genormten Widerstandswerten:"
405 INPUT "R1=";R1
410 INPUT "R2=";R2
415 INPUT "R3=";R3
420 FO=SQR((R1+R3)/(R3*4*PI*PI*C*C*R1*R2))
425 Q=R2/(PI*FO*C)
430 VR=R2/(2*R1)
435 CLS
440 PRINT:PRINT "Fo=";FO
445 PRINT " Q=";Q
450 PRINT "Vr=";VR
455 PRINT TAB(15)"R1=";R1
460 PRINT TAB(15)"R2=";R2
465 PRINT TAB(15)"R3=";R3
470 RETURN
475 REM
480 WINDOW:CLS
485 REM
490 PRINT AT(1,10);"R1"
495 PRINT AT(2,6);"Ig Ia"
500 PRINT AT(3,4);"o "
505 PRINT AT(4,9);" "
510 PRINT AT(5,16);" "
515 PRINT AT(6,16);" R2 R3"
520 PRINT AT(7,4);"U1 Ua"
525 PRINT AT(8,16);" "
530 PRINT AT(9,16);" "
535 PRINT AT(10,17);" "
540 PRINT AT(11,4);"o"
545 PRINT AT(13,1);"Der belastete Spannungsteiler"
550 WINDOW 16,31,0,31:CLS:PAUSE 10
555 INPUT "R1=";R1
560 INPUT "R2=";R2
565 INPUT "Ra=";RA
570 INPUT "U1=";U1
575 RG=R1+((R2*RA)/(R2+RA))
580 IG=U1/RG
585 UA=(U1*R2*RA)/((R1*R2)+(R1*RA)+(R2*RA))
590 IA=UA/RA
595 K=IA*IA*RA
600 G=UA/U1
605 PRINT:PRINT
610 PRINT "Rg=";RG:PRINT
615 PRINT "Ig=";IG:PRINT
620 PRINT "Ua=";UA:PRINT
625 PRINT "Ia=";IA:PRINT
630 PRINT AT(28,20);"Pa="
635 PRINT AT(28,24);K
640 PRINT AT(24,17);"Ua/U1="
645 PRINT AT(24,24);G
650 RETURN
651!
652!
653!
654!
655 REM SCHWINGKREIS
656!
657!
658!
659!
660 WINDOW:CLS
665 PRINT:PRINT:PRINT
670 PRINT "Der Faktor R/2L ist die"
675 PRINT "Daempfungskonstante,und"
680 PRINT "wird im allgemeinen ver-"
685 PRINT "vernachlaessigt (R=0)."
690 PRINT:PRINT "Der Verlustfaktor des"
695 PRINT "Schwingkreises d=R/(2*PI*f*L),"
700 PRINT "die Guete Q=1/d und der Kenn-"
705 PRINT "widerstand"
710 PRINT "Zo=SQR(L/C) werden mit berechnet"
715 PRINT "Der Kreiswiderstand Rk=L/R*C"
720 PRINT "wird ebenfalls angegeben"
725 A$=INKEY$:IF A$=""THEN 725
730 WINDOW:CLS:RESTORE 755
735 FOR I=1 TO 50
740 READ X,Y,Z
745 PRINT AT(X,Y);CHR$(Z)
750 NEXT I
755 DATA 2,15,82,4,11,160,4,12,160,4,13,165,3,13,168,5,13,167,3,14,160
760 DATA 3,15,160,3,16,160,3,17,169,5,14,160,5,15,160,5,17,170,4,17
765 DATA 163,4,18,160,4,19,160,4,20,169,5,9,129,5,20,161,6,9,129,6,20,161
770 DATA 7,9,129,7,19,160,7,20,162,7,21,160,8,9,129,8,8,76,8,19,160,8,20
775 DATA 164,8,21,160,9,9,129,9,20,161,9,22,67,10,9,129,10,20,161,11,20
780 DATA 170,11,10,160,11,11,160,11,12,160,11,13,160,11,14,160,11,15,160
785 DATA 11,16,160,11,17,160,11,18,160,11,19,160,4,10,160,5,16,160,4,9
790 DATA 246,11,9,242
795 PRINT AT(14,9);"Berechnung der"
800 PRINT AT(15,8);"Resonanzfrequenz"
805 PRINT AT(16,7);"**** Y2 8OH ****"
810 WINDOW 18,31,0,31:CLS
815 PAUSE 10
820 INPUT "L=";L
825 INPUT "C=";C
830 INPUT "R=";R
835 PRINT
840 FO=(1/(2*PI))*SQR((1/(L*C))-((R*R)/(4*L*L)))
845 D=R/(2*L)
850 Q=(2*PI*FO)/L
855 ZO=SQR(L/C)
860 IF R=0 THEN GOTO 870
865 RK=L/R*C
870 CLS:PAUSE 10
875 PRINT "Fo=";FO
880 PRINT "D =";D
885 PRINT "Q =";Q
890 PRINT "Zo=";ZO
895 IF R=0 THEN RETURN
900 PRINT "Rk=";RK:PRINT
905 RETURN
906!
907!
908! TRANSISTOR
909!
910 WINDOW:CLS:PRINT:PRINT:PRINT:PRINT
915 PRINT "TRANSISTOR IN EMITTERSCHALTUNG":PRINT
920 PRINT " MIT SPANNUNGSGEGENKOPPLUNG.: 1"
925 PRINT " MIT STROMGEGENKOPPLUNG.....: 2"
930 PRINT " ALS EMITTERFOLGER..........: 3"
935 PRINT:PRINT:PRINT " Rueckkehr Hauptmenue.......: 4"
940 PRINT:PRINT:PRINT:PRINT
945 PRINT TAB(6);:INPUT "Waehlen Sie! ";A:CLS
950 IF A<1 OR A>4 THEN GOSUB 1175:GOTO 910
955 IF A<>4 THEN PRINT AT(29,5);"Angaben in OHM und VOLT"
960 ON A GOTO 965,1030,1065,40
965 PRINT "** TRANSISTOR MIT":PRINT " SPANNUNGSGEGENKOPPLUNG **":PRINT:PRINT:PRINT
970 PRINT SPC(10)"U0";SPC(31)"";SPC(29)"Rc";CHR$(159);SPC(27)"R1 ";CHR$(159)
975 PRINT SPC(8)"":PRINT " Rg Rb";CHR$(158);CHR$(158);""
980 PRINT "Ua":PRINT "";CHR$(158);CHR$(158);" Ue";CHR$(158);CHR$(158);
985 PRINT " ":PRINT "~ V1 ":PRINT " "
990 PRINT CHR$(158);SPC(3);CHR$(158);SPC(7);CHR$(158);CHR$(158)
995 PRINT "B-STROM-":PRINT " VERSTAERKUNG":PRINT
1000 PRINT "V-VERSTAERKUNG":PRINT:PRINT "Ri-EINGANGS-":PRINT " WIDERSTAND":PRINT
1005 PRINT "Ra-AUSGANGS-":PRINT " WIDERSTAND":WINDOW 5,26,16,31
1010 INPUT "R1=";R1:INPUT "Rc=";RC:INPUT "Rb=";RB:INPUT "Rg=";RG:INPUT "U0=";U0
1015 INPUT " B=";B:PRINT:PRINT:CS=RC:R2=100E+06:RE=RC/RC:GOSUB 1085
1020 V0=-1/(1/RC+1/CE+1/R1)*B/BE:V=1/(1/V0-RB/R1):RI=1/((1-V0)/R1+1/BE)+RB
1025 RA=1/(1/R1+1/(R1*BE/(RB+RG)+BE+R1)+1/RC+1/CE)/B:GOSUB 1180:GOTO 1010
1030 PRINT "**** TRANSISTOR MIT":PRINT " STROMGEGENKOPPLUNG ****":PRINT:PRINT
1035 GOSUB 1110:PRINT AT(8,10);""
1040 INPUT "R1=";R1:INPUT "R2=";R2:INPUT "Rc=";RC
1045 INPUT "Re=";RE:INPUT "Rg=";RG:INPUT " B=";B:INPUT "U0=";U0:PRINT
1050 CS=0:GOSUB 1085:V=1/(-1/(1/(1/RC+1/CE)*B/BE)-RE/RC)
1055 RI=1/(1/(B*RE+BE)+1/R1+1/R2):RA=1/(1/((1/(BE+RE+RG)*B*RE+1)*CE)+1/RC)
1060 GOSUB 1180:GOTO 1040
1065 PRINT "******** EMITTERFOLGER ********":PRINT:PRINT:PRINT:GOSUB 1110:PRINT AT(10,10);""
1070 INPUT "R1=";R1:INPUT "R2=";R2:INPUT "Rc=";RC:INPUT "Re=";RE:INPUT "Rg=";RG
1075 INPUT " B=";B:INPUT "U0=";U0:PRINT:CS=0:GOSUB 1085:RI=1/(1/(B*RE+BE)+1/R1+1/R2)
1080 V=1/(BE/B/RE+1):RA=1/(1/((BE+RG)/B)+1/RE):GOSUB 1180:GOTO 1070
1085 UB=0:DU=2:RS=R2/(R1+R2):R0=-8.699988E-15*(RS*(R1/B+CS)+RE)
1090 DU=DU/2:N=(EXP(UB/26.00001E-03)*R0)+U0*RS-UB
1095 IF N>=0 THEN UB=UB+DU:ELSE UB=UB-DU
1100 IF DU-100E-06>=0 GOTO 1090:ELSE IC=8.699978E-15*EXP(UB/26.00001E-03)
1105 BE=B/IC*26.00002E-03:CE=BE*200E+03/B/B:UE=RE*IC:UC=U0-IC*RC:RETURN
1110 PRINT SPC(8);"U0";SPC(27);"";SPC(25);"R1";CHR$(159);"Rc";CHR$(159)
1115 PRINT SPC(6);"";CHR$(159);" ";CHR$(159):PRINT " Rg V1":PRINT ""
1120 PRINT "";CHR$(158);CHR$(158);" ":PRINT " Ue Ua"
1125 PRINT "~ R2":PRINT " Re":PRINT CHR$(158);" ";CHR$(158);" ";
1130 PRINT CHR$(158);" ";CHR$(158);CHR$(158):PRINT:PRINT "B-STROM-":PRINT " VERSTAERKUNG":PRINT
1135 PRINT "V-VERSTAERKUNG":PRINT:PRINT "Ri-EINGANGS-":PRINT " WIDERSTAND":PRINT
1140 PRINT "Ra-AUSGANGS-":PRINT " WIDERSTAND":WINDOW 5,25,16,31:RETURN
1145 PRINT AT(27,5);"M-Menue W-wiederholen":PRINT AT(31,14);"T U K"
1150 I=DEEK(43):POKE I,32
1155 PRINT AT(29,1);"(C) 1987 by Holger Tschirschky"
1160 A$=INKEY$:IF A$=""THEN 1160
1165 IF A$="M"THEN 910
1170 IF A$="W"THEN CLS:RETURN
1175 PRINT:PRINT "F E H L E R":PRINT:PRINT:PAUSE 30:CLS:RETURN
1180 IF UC>=R0 GOTO 1185:ELSE PRINT " UE > UC":PRINT:PRINT " NEU":PRINT:PRINT " DIMENSIONIEREN":GOTO 1190
1185 PRINT "Ic=";IC:PRINT:PRINT "Uc="UC:PRINT:PRINT "Ue=";UE:PRINT:PRINT " V=";V:PRINT:PRINT "Ri=";RI:PRINT:PRINT "Ra=";RA
1190 GOSUB 1145:RETURN
1195!
1200!
1205!
1210! VIERPOL
1215!
1220!
1225!
1230!
1235!
1240 WINDOW:CLS:PRINT " **** MENUE NF/HF-TECHNIK ****":PRINT:PRINT:PRINT
1245 PRINT "BERECHNUNG EINES TIEFPASSES..: 1"
1250 PRINT "PI-FILTER IMPEDANZANPASSUNG..: 2"
1255 PRINT "WIDERSTANSDAEMPFUNGSGLIED....: 3"
1260 PRINT "STERN-DREIECK-WANDLUNG.......: 4"
1265 PRINT "DREIECK-STERN-WANDLUNG.......: 5"
1270 PRINT:PRINT:PRINT "Rueckkehr ins Hauptmenue.......6"
1275 PRINT TAB(6);:INPUT "Waehlen Sie! ";A:CLS
1280 IF A<1 OR A>6 THEN GOSUB 1575:GOTO 1195
1285 ON A GOTO 1290,1340,1400,1480,1480,40
1290 PRINT "* BERECHNUNG EINES TIEFPASSES *":WINDOW 5,25,0,12
1295 PRINT " ":PRINT " ":PRINT " ":PRINT " R1 ":PRINT "E A"
1300 PRINT " R2 ":PRINT "Z1 Z2";:PRINT " ":PRINT ""
1305 PRINT:PRINT:PRINT "Z1: EINGANGS- IMPEDANZ":PRINT:PRINT "Z2: AUSGANGS- IMPEDANZ"
1310 PRINT:PRINT:PRINT " Z1 > Z2":WINDOW 6,25,15,31
1315 INPUT "Z1=";Z1:PRINT:INPUT "Z2=";Z2:PRINT:PRINT:PRINT
1320 IF Z1<=Z2 OR Z1<=0 OR Z2<=0 THEN GOSUB 1575:GOTO 1315:ELSE R1=Z1*SQR(1-(Z2/Z1))
1325 R2=Z2/SQR(1-(Z2/Z1)):M=SQR(Z1/Z2)+SQR((Z1/Z2)-1):L=20*LN(M)/LN(10)
1330 PRINT "R1 =";R1:PRINT:PRINT "R2 =";R2:PRINT:PRINT "VERLUST:":PRINT:PRINT " ";L;"dB"
1335 GOSUB 1555:WINDOW:CLS:GOTO 1290
1340 PRINT "* PI-FILTER IMPEDANZANPASSUNG *":WINDOW 4,25,0,14:PRINT " L"
1345 PRINT " ":PRINT " ":PRINT " ":PRINT "E A"
1350 PRINT " ":PRINT "Z1 C1 C2 Z2";:PRINT " ":PRINT ""
1355 PRINT:PRINT "Z1: EINGANGS- IMPEDANZ":PRINT:PRINT "Z2: AUSGANGS- IMPEDANZ":PRINT
1360 PRINT " Z1 > Z2":PRINT:PRINT "f: FREQUENZ":PRINT:PRINT "Q: GUETE":WINDOW 5,25,17,31
1365 INPUT "Z1=";Z1:PRINT:INPUT "Z2=";Z2:PRINT:INPUT " Q=";Q:PRINT:INPUT " f=";F:PRINT
1370 C=((Z2/Z1)*(Q^2+1))-1
1375 IF Z1<=Z2 OR Z1<=0 OR Z2<=0 OR Q<=0 OR F<=0 OR C<=0 THEN GOSUB 1575:GOTO 1365:ELSE A=Z1/Q
1380 B=Z2/SQR(C):D=((Z2/(Q*B))+1)*((Q*Z1)/(Q^2+1))
1385 C1=1/(2*PI*F*A):C2=1/(2*PI*F*B):L=D/(2*PI*F):PRINT
1390 PRINT "PI-FILTER":PRINT "---------":PRINT:PRINT "C1=";C1:PRINT:PRINT "C2=";C2:PRINT:PRINT " L=";L
1395 GOSUB 1555:CLS:GOTO 1365
1400 PRINT "** WIDERSTANDSDAEMPFUNGSGLIED **":GOSUB 1525
1405 WINDOW 15,25,0,12:CLS:PRINT "Z1: EINGANGS- IMPEDANZ":PRINT
1410 PRINT "Z2: AUSGANGS- IMPEDANZ":WINDOW 15,25,16,31
1415 INPUT "Z1=";Z1:PRINT:INPUT "Z2=";Z2:IF Z1<=Z2 OR Z1=0 OR Z2=0 THEN GOSUB 1575:GOTO 1415
1420 M=10*(LN((SQR(Z1/Z2)+SQR((Z1/Z2)-1))^2)/LN(10))
1425 WINDOW 21,25,0,14:PRINT "MINIMALER":PRINT "SYSTEMVERLUST:":PRINT:PRINT " ";M;"dB"
1430 WINDOW 19,25,16,31:PRINT "GEWUENSCHTER":PRINT:PRINT " VERLUST:":PRINT:INPUT "";L:PRINT
1435 IF L<M OR L>=370 THEN GOSUB 1575:GOTO 1430
1440 N=10^(L/10):A=2*SQR(Z1*Z2*N)/(N-1):B=(Z1*((N+1)/(N-1)))-A
1445 C=(Z2*((N+1)/(N-1)))-A:D=((N-1)*SQR(Z1*Z2/N))/2
1450 E=1/(((N+1)/(N-1)/Z1)-(1/D)):F=1/(((N+1)/(N-1)/Z2)-(1/D))
1455 WINDOW 15,25,0,31:CLS:PRINT "Z1=";Z1;:PRINT "Z2=";Z2;:PRINT "VERLUST";L;"dB"
1460 FOR I=1 TO 31:PRINT "";:NEXT I:PRINT:PRINT:PRINT "R1=";E;TAB(17)"R1=";B:PRINT:PRINT "R2=";F;TAB(17);
1465 PRINT "R2=";C:PRINT:PRINT "R3=";D;TAB(17)"R3=";A
1470 FOR I=18 TO 23:PRINT AT(I,14);"":NEXT I
1475 GOSUB 1555:WINDOW 15,28,0,31:CLS:GOTO 1405
1480 PRINT "** DREIECK <-> STERN WANDLUNG **":GOSUB 1525
1485 IF A=5 THEN WINDOW 16,25,0,14:ELSE WINDOW 16,25,16,31
1490 INPUT "R1=";X:PRINT:INPUT "R2=";Y:PRINT:INPUT "R3=";Z
1495 IF X<>ABS(X)OR Y<>ABS(Y)OR Z<>ABS(Z)OR X=0 OR Y=0 OR Z=0 THEN GOSUB 1575:GOTO 1490
1500 IF A=5 GOTO 1510
1505 R1=X+Y+(X*Y)/Z:R2=Y+Z+(Y*Z)/X:R3=X+Z+(X*Z)/Y:WINDOW 16,25,0,14:GOTO 1515
1510 R1=X*Z/(X+Y+Z):R2=X*Y/(X+Y+Z):R3=Y*Z/(X+Y+Z):WINDOW 16,25,16,31
1515 PRINT "R1=";R1:PRINT:PRINT "R2=";R2:PRINT:PRINT "R3=";R3:GOSUB 1555
1520 WINDOW 16,31,0,31:CLS:GOTO 1485
1525 PRINT:PRINT " "
1530 PRINT " ":PRINT " "
1535 PRINT "E R3 A E R1 R2 A":PRINT " "
1540 PRINT " R1 ":PRINT "Z1 R2Z2 Z1 R3 Z2"
1545 PRINT " ":PRINT " "
1550 RETURN
1555 PRINT AT(27,5);"M-Menue W-wiederholen"
1560 I=DEEK(43):POKE I,32
1565 PRINT AT(29,1);"(C) 1987 by Holger Tschirschky"
1570 A$=INKEY$:IF A$="M"THEN 1200:ELSE IF A$<>"W"GOTO 1570:ELSE CLS:RETURN
1575 PRINT:PRINT "F E H L E R":PRINT:PRINT:PAUSE 30:CLS:RETURN
2000 CLS
2003 PRINT STRING$(32,"*")
2006 PRINT:PRINT:PRINT " UNGEREGELTE NETZTEILE":PRINT:PRINT:PRINT
2009 PRINT STRING$(32,"*")
2012 PRINT:PRINT "Auswahl:"
2015 PRINT:PRINT:PRINT "Einweggleichrichtung :1":PRINT
2018 PRINT:PRINT "Zweiweggleichrichtung :2":PRINT
2021 PRINT:PRINT "Brueckengleichrichtung :3":PRINT
2024 PRINT:PRINT "Spannungsverdoppler :4":PRINT
2027 PRINT:PRINT "Ende :5":PRINT
2030 PRINT:PRINT:PRINT "Eingabe:";
2033 A$=INKEY$
2036 IF A$="" THEN 2033
2039 A=VAL(A$)
2042 S=1.5
2045 ON A GOTO 2051,2081,2111,2141,2171
2048 GOTO 2033
2051 GOSUB 2180
2054 UE=(UG+UB+.7)/1.4142
2057 PT=IG*(UG+.7)*S
2060 DS=2*UE*1.4142*S
2063 ID=IG*S
2066 PD=ID*.7
2069 UK=UG*S
2072 CL=4950*IG/UB
2075 PRINT "Einweggleichrichtung":PRINT:PRINT:B=50
2078 GOSUB 2198:RETURN
2081 GOSUB 2180
2084 UE=(UB+UG+.7)/1.4142
2087 PT=(UG+.7)*IG*S
2090 ID=.5*IG*S
2093 DS=2*UE*1.4142*S
2096 PD=ID*.7
2099 UK=UG*S
2102 CL=1870*IG/UB
2105 PRINT "Zweiweggleichrichtung":PRINT:PRINT:B=100
2108 GOTO 2078
2111 GOSUB 2180
2114 UE=(UG+1.4+UB)/1.4142
2117 ID=IG*S
2120 PT=(UG+1.4)*ID
2123 DS=UE*1.4142*S
2126 PD=ID*.7
2129 UK=UG*S
2132 CL=1870*IG/UB
2135 PRINT "Brueckengleichrichtung":PRINT:PRINT:B=100
2138 GOTO 2078
2141 GOSUB 2180
2144 UE=(UG+1.4+UB)/2.8284
2147 PT=(UG+1.4)*IG*S
2150 ID=2*IG*S
2153 DS=UE*1.4142*S
2156 PD=ID*.7
2159 UK=.5*UG*S
2162 CL=2700*IG/UB
2165 PRINT "Spannungsverdoppler":PRINT:PRINT:B=100
2168 GOTO 2078
2171 RETURN
2180 CLS:PRINT "Gebe folgende Werte ein !":PRINT:PRINT
2183 PRINT "1. Gleichspannung Ug in V":PRINT:INPUT " ";UG:PRINT:PRINT
2186 PRINT "2. Gleichstrom Ig in A":PRINT:INPUT " ";IG:PRINT:PRINT
2189 PRINT "3. Spitzenwert der max. zulaes- sigen Brummspannung in V":PRINT
2192 INPUT " ";UB:PRINT
2195 CLS:RETURN
2198 PRINT:PRINT:PRINT "Datenausgabe":PRINT "============":PRINT:PRINT:PRINT
2201 PRINT "Trafo";PT;"W/";UE;"Ueff":PRINT
2204 PRINT "Diode";DS;"V/";PD;"W/";ID;"A":PRINT
2207 PRINT "Kond.";UK;"V/";CL;"Mikrofarad":PRINT
2210 PRINT "Brummfrequenz :";B;"Hz":PRINT:A=0
2213 INPUT "";A:RETURN
3000!
3001!
3002!
3003!
3004! OPERATIONSVERSATAERKER
3005!
3006!
3007!
3008!
3009 WINDOW:CLS:PRINT:PRINT
3010 PRINT "SCHALTUNGSBERECHNUNG":PRINT:PRINT "AN OPERATIONSVERSTAERKERN"
3015 PRINT:PRINT:PRINT STRING$(32,"-")
3020 PRINT "Auswahl des Schaltungstypes":PRINT
3025 PRINT STRING$(32,"-"):PRINT
3030 PRINT:PRINT "Invertierender Verstaerker:":PRINT:PRINT "(1)"
3035 PRINT:PRINT "Nichtinvertierender Verstaerker:":PRINT "(2)"
3040 PRINT:PRINT "Kombination beider Varianten:":PRINT:PRINT "(3)"
3042 PRINT:PRINT "Rueckkehr ins Hauptmenue...4"
3045 CLEAR:PRINT:PRINT:PRINT "Auswahl:";
3050 A=VAL(INKEY$)
3055 IF A=0 THEN 3050
3060 CLS: WINDOW 4,31,0,31
3065 PRINT AT(3,0);STRING$(32,"=")
3070 A1=A:IF A>4 OR A<1 THEN 3045
3075 ON A GOTO 3085,3200,3270,40
3085 PRINT AT(1,0);"Invertierender Verstaerker":PRINT:PRINT:PRINT
3090 CLEAR:GOSUB 3415
3095 GOSUB 3435
3100 IF S=1 THEN 3125
3105 PRINT "-Vu:";
3110 GOSUB 3640
3115 GOSUB 3450
3120 IF(S<>2)THEN PRINT "Falsche Eingabe":GOTO 3090
3125 PRINT:IF VU=0 THEN VU=R2/R1:GOSUB 3660
3130 IF R1=0 THEN R1=R2/VU:PRINT "R1= "R1
3135 IF R2=0 THEN R2=VU*R1:PRINT "R2= "R2
3140 PRINT:PRINT "Vu = "VU TAB(15)"="VU$
3145 PRINT:PRINT "*R=Berechnung ";
3150 PRINT "der E48-Reihe"::PRINT "*E=Ende":PRINT "Auswahl :";
3155 A=VAL(INKEY$)
3160 IF INKEY$="" THEN 3160
3165 IF INKEY$="R" THEN PRINT "R":GOTO 3460
3170 CLEAR
3175 A=VAL(INKEY$)
3180 IF INKEY$="E" THEN 3000
3185 WINDOW
3190 CLS
3195 GOTO 3060
3200 PRINT AT(1,0);"Nichtinvertierender Verstaerker"
3205 PRINT:PRINT "(R2 darf Null werden)":PRINT
3210 CLEAR:GOSUB 3415
3215 GOSUB 3435
3220 IF S=1 THEN 3250
3225 PRINT " Vu:";
3230 GOSUB 3640
3235 GOSUB 3450
3240 IF S=3 AND R2=0 THEN 3250
3245 IF S<>2 THEN PRINT "Falsche Eingabe":GOTO 3210
3250 PRINT:IF VU=0 THEN VU=R2/R1+1: GOSUB 3660
3255 IF R1=0 THEN R1=R2/(VU-1):PRINT "R1 ="R1
3260 IF R2=0 THEN R2=R1*(VU-1):PRINT "R2 ="R2
3265 GOTO 3140
3270 PRINT AT(1,0);"Verstaerker mit einem invert."
3275 PRINT AT(2,0);"und einem nichtinv. Eingang"
3280 PRINT:PRINT "(R2/R3 duerfen Null werden)":PRINT
3285 GOSUB 3415:PRINT "R3 :";:GOSUB 3680:R3=R:PRINT "R4 :";:GOSUB 3680:R4=R
3290 IF R1<>0 AND R2<>0 THEN 3305
3295 PRINT "Vu1:";:GOSUB 3640
3300 V1=VU:F1=VF:V1$=VU$
3305 IF R3<>0 AND R4<>0 THEN 3320
3310 PRINT "Vu2:";:GOSUB 3640
3315 V2=VU:F2=VF:V2$=VU$
3320 VU=V1:GOSUB 3435
3325 IF S=2 AND R2=0 THEN 3335
3330 IF S<>1 THEN PRINT:PRINT "Falsche Eingabe":CLEAR:GOTO 3285
3335 S=0
3340 IF V2=0 THEN S=S+1
3345 IF R3=0 THEN S=S+1
3350 IF R4=0 THEN S=S+1
3355 IF S=2 AND R3=0 THEN 3365
3360 IF S<>1 THEN 3330
3365 PRINT
3370 IF V1=0 THEN V1=(R2/R1):VU=V1: GOSUB 3660:V1$=VU$
3375 IF R1=0 THEN R1=(R2/V1):PRINT "R1 = "R1
3380 IF R2=0 THEN R2=(V1*R1):PRINT "R2 = "R2
3385 IF V2=0 THEN V2=((R4/(R3+R4))*(V1+1)):VU=V2:GOSUB 3660:V2$=VU$
3390 IF R3=0 THEN R3=(R4*((V1+1)/V2-1)):PRINT "R3 = "R3
3395 IF R4=0 THEN R4=(R3/((V1+1)/V2-1)):PRINT "R4 = "R4
3400 PRINT:PRINT "Vu1="V1 TAB(15)"="V1$
3405 PRINT "Vu2="V2 TAB(15)"="V2$
3410 GOTO 3145
3415 PRINT:PRINT
3420 PRINT "R1 :";:GOSUB 3680:R1=R
3425 PRINT "R2 :";:GOSUB 3680:R2=R
3430 RETURN
3435 S=0
3440 IF R1=0 THEN S=S+1
3445 IF R2=0 THEN S=S+1
3450 IF VU=0 THEN S=S+1
3455 RETURN
3460 PRINT
3465 R=R1:PRINT "R1 =";:GOSUB 3495
3470 R=R2:PRINT "R2 =";:GOSUB 3495
3475 IF A1<>3 THEN 3145
3480 R=R3:PRINT "R3 =";:GOSUB 3495
3485 R=R4:PRINT "R4 =";:GOSUB 3495
3490 GOTO 3145
3495 F=1
3500 IF R=0 THEN 3550
3505 IF R<1 THEN R=R*10:F=F/10:GOTO 3505
3510 IF R<10 THEN 3520
3515 R=R*0.1:F=F*10:GOTO 3510
3520 RESTORE:READ B
3525 A=B:READ B
3530 IF R>B THEN 3525
3535 C=R/A:D=B/R
3540 IF C<D THEN R=A:ELSE R=B
3545 IF R=10 THEN R=1:F=F*10
3550 IF F>1E6 THEN F=F/10:R=R*10:GOTO 3550
3555 IF F=1E6 THEN F$="M":GOTO 3595
3560 IF F>1E3 THEN F=F/10:R=R*10:GOTO 3560
3565 IF F=1E3 THEN F$="k":GOTO 3595
3570 IF F>1 THEN F=F/10:R=R*10:GOTO 3570
3575 IF F=1 THEN F$=" ":GOTO 3595
3580 IF F>1E-3 THEN F=F/10:R=R*10:GOTO 3580
3585 IF F<1E-3 THEN F=F*10:R=R/10:GOTO 3585
3590 F$="m"
3595 PRINT R;F$ "Ohm":RETURN
3600 DATA 1,1.05,1.1,1.15,1.2,1.25,1.3,1.4,1.5,1.55,1.6,1.7,1.8,1.9
3605 DATA 2,2.1,2.2,2.3,2.4,2.55,2.7,2.85,3,3.15,3.3,3.45
3610 DATA 3.6,3.75,3.9,4.1,4.3,4.5,4.7,4.9,5.1,5.35,5.6,5.9,6.2,6.5
3615 DATA 6.8,7.15,7.5,7.85,8.2,8.6,9.1,9.55,10
3640 INPUT "";VU$
3645 IF VU$="" THEN VU=0: RETURN
3650 FV=INSTR("DB",VU$)+INSTR("dB",VU$)
3655 VU=VAL(VU$)
3660 IF FV=0 THEN VU$=STR$(20*(LN(VU))/LN(10))
3665 IF FV<>0 THEN VU=10^(VU/20)
3670 VU$=STR$(VAL(VU$))+" dB"
3675 RETURN
3680 R$="0":INPUT "";R$
3685 R=VAL(R$)
3690 IF R=0 THEN RETURN
3695 IF INSTR("K",R$)<>0 OR INSTR("k",R$)<>0 THEN R=R*1E3:RETURN
3700 IF INSTR("M",R$)<>0 THEN R=R*1E6
3705 RETURN
4000!
4005!
4010!
4015!
4020! PASSIVE FILTER
4025!
4030!
4035!
4040 CLS:PRINT
4045 PRINT " Hoch und Tiefpaesse":PRINT
4050 PRINT STRING$(32,"*"):PRINT:PRINT
4055 PRINT "Unser Angebot:":PRINT
4060 PRINT "RC-Pass...........1":PRINT
4065 PRINT "RL-Pass...........2":PRINT
4070 PRINT "LC-Pass...........3":PRINT
4075 PRINT "LCL-Hochpass......4":PRINT
4080 PRINT "LCL-Tiefpass......5":PRINT
4085 PRINT "CLC-Hochpass......6":PRINT
4090 PRINT "CLC-Tiefpass......7":PRINT
4095 PRINT "Daempfungsglied...8":PRINT
4100 PRINT "Ende..............9":PRINT:PRINT
4105 PRINT "Bitte waehle ! ";
4110 GOSUB 4985: CLS
4115 IF A$="T" THEN RETURN
4120 IF A<1 OR A>9 THEN 4000
4125 ON A GOTO 4130,4220,4290,4375,4435,4485,4545,4685,40
4130 PRINT "RC-Pass":PRINT "=======":PRINT
4135 GOSUB 4770:S2=10:S1=18
4140 GOSUB 4900
4145 GOSUB 4605
4150 PRINT:PRINT "Willst Du R oder C vorgeben ?":PRINT
4155 PRINT "in Ohm oder nF (R/C) :";:GOSUB 4985:PRINT A$:PRINT
4160 IF A$<>"R" AND A$<>"C"THEN 4150
4165 IF A$="R"THEN INPUT "R=";R:PRINT
4170 IF A$="C"THEN INPUT "C=";C:C=C/1E9:PRINT
4175 IF A$="R"THEN C=1/(2*PI*F*R)
4180 IF A$="C"THEN R=1/(2*PI*F*C)
4185 GOSUB 4675
4190 PRINT "R =";R;" Ohm":PRINT
4195 PRINT "C =";C*1E9;" nF":PRINT
4200 GOSUB 4980
4205 GOSUB 4790
4210 GOSUB 4900
4215 GOTO 4615
4220 PRINT:PRINT "RL-Pass":PRINT "=======":PRINT
4225 GOSUB 4770:S2=10:S1=18
4230 GOSUB 4910
4235 GOSUB 4605
4240 GOSUB 4620
4245 IF A$="R"THEN L=R/(2*PI*F)
4250 IF A$="L"THEN R=2*PI*F*L
4255 GOSUB 4675
4260 PRINT "R =";R;" Ohm":PRINT
4265 PRINT "L =";L*1E3;" mH":PRINT
4270 GOSUB 4980
4275 GOSUB 4790
4280 GOSUB 4910
4285 GOTO 4615
4290 PRINT:PRINT "LC-Pass":PRINT "=======":PRINT
4295 GOSUB 4770:S2=10:S1=18
4300 GOSUB 4920
4305 GOSUB 4605
4310 PRINT "Willst Du L oder C vorgeben ?":PRINT
4315 PRINT "in mH oder nF (L/C) :";:GOSUB 4985:PRINT A$:PRINT
4320 IF A$<>"L"AND A$<>"C"THEN 4310
4325 IF A$="C"THEN INPUT "C=";C:C=C/1E9:PRINT
4330 IF A$="L"THEN INPUT "L=";L:L=L/1000:PRINT
4335 IF A$="L"THEN C=1/(4*PI^2*F^2*L)
4340 IF A$="C"THEN L=1/(4*PI^2*F^2*C)
4345 GOSUB 4675
4350 L=L*1000:C=C*1E9:GOSUB 4660
4355 GOSUB 4980
4360 GOSUB 4790
4365 GOSUB 4920
4370 GOTO 4615
4375 PRINT:PRINT "LCL-Hochpass":PRINT "============":PRINT
4380 GOSUB 4835
4385 GOSUB 4605
4390 GOSUB 4650
4395 F1=F/.9:Z=R/1.25
4400 L=1000*Z/(2*PI*F1)
4405 C=1E9/(4*PI*F1*Z)
4410 GOSUB 4675
4415 GOSUB 4660
4420 X$="u":GOSUB 4980
4425 GOSUB 4835
4430 GOTO 4615
4435 PRINT:PRINT "LCL-Tiefpass":PRINT "============":PRINT
4440 GOSUB 4850
4445 GOSUB 4605
4450 GOSUB 4650
4455 F1=F/.9:Z=R/0.8
4460 L=Z*1000/(2*PI*F1)
4465 C=1E9*2/(2*PI*Z*F1)
4470 GOSUB 4675
4475 GOSUB 4660:X$="o":GOSUB 4980
4480 GOSUB 4850:GOSUB 4615
4485 PRINT:PRINT "CLC-Hochpass":PRINT "============":PRINT
4490 GOSUB 4855
4495 GOSUB 4605
4500 GOSUB 4650
4505 F1=F/.9:Z=R/0.8
4510 L=1000*Z/(4*PI*F1)
4515 C=1E9/(2*PI*Z*F1)
4520 GOSUB 4675
4525 GOSUB 4660
4530 X$="u":GOSUB 4980
4535 GOSUB 4855
4540 GOTO 4615
4545 PRINT:PRINT "CLC-Tiefpass":PRINT "============":PRINT
4550 GOSUB 4840
4555 GOSUB 4605
4560 GOSUB 4650
4565 F1=F/.9:Z=R/1.25
4570 L=2*1000*Z/(2*PI*F1)
4575 C=1E9/(2*PI*Z*F1)
4580 GOSUB 4675
4585 GOSUB 4660
4590 X$="o":GOSUB 4980
4595 GOSUB 4840
4600 GOTO 4615
4605 F=0:INPUT "Grenzfrequenz in kHz:";F:F=F*1000:PRINT:IF F<=0 THEN 4605
4610 RETURN
4615 PRINT AT(30,24);">ENTER<" :GOSUB 4985:GOTO 4040
4620 PRINT "Willst Du R oder L vorgeben ?":PRINT
4625 PRINT "in Ohm oder mH (R/L) :";:GOSUB 4985:PRINT A$:PRINT
4630 IF A$<>"R"AND A$<>"L"THEN 4620
4635 IF A$="R"THEN INPUT "R=";R:PRINT
4640 IF A$="L"THEN INPUT "L=";L:L=L/1000:PRINT
4645 RETURN
4650 INPUT "Abschluss-R in Ohm :";R:PRINT:IF R<=0 THEN 4650
4655 RETURN
4660 PRINT "C =";C;" nF":PRINT
4665 PRINT "L =";L;" mH":PRINT
4670 RETURN
4675 CLS:PRINT:PRINT:PRINT "Ergebnis :":PRINT "----------":PRINT
4680 RETURN
4685 PRINT:PRINT "Daempfungsglied":PRINT "===============":PRINT
4690 GOSUB 4860
4695 INPUT "Daempfung in dB :";N:PRINT:D=N*0.1151
4700 IF N<=0 THEN 4695
4705 INPUT "Wellen-R in Ohm :";ZL:PRINT
4710 G=EXP(1)^D-1
4715 R1=ZL*G:R2=ZL/G
4720 CLS
4725 GOSUB 4675
4730 PRINT "R1=";R1;" Ohm":PRINT
4735 PRINT "R2=";R2;" Ohm":PRINT
4740 PRINT "ZL=";ZL;"Ohm":PRINT
4745 PRINT "a =";N;" dB":PRINT
4750 GOSUB 4860
4755 PRINT:GOTO 4615
4770 PRINT "Hoch- oder Tiefpass (0/1):";:GOSUB 4985:PRINT A:PRINT
4775 IF A<0 OR A>1 THEN 4770
4780 PRINT:IF A=0 THEN X$="u":ELSE X$="o"
4785 RETURN
4790 PRINT:PRINT "Die Grenzfrequenz gilt als"
4795 PRINT:IF A=0 THEN PRINT "untere";:ELSE PRINT "obere";
4800 PRINT " Grenzfrequenz.":PRINT:RETURN
4805 Z2$="":RESTORE 4970:GOSUB 4930:RETURN
4810 Z2$="":RESTORE:GOSUB 4930:RETURN
4815 Z2$="":RESTORE 4975:GOSUB 4930:RETURN
4820 Z2$="":RESTORE 4970:GOSUB 4930:RETURN
4825 Z2$="":RESTORE 4975:GOSUB 4930:RETURN
4830 Z2$="":RESTORE:GOSUB 4930:RETURN
4835 Z2$="":RESTORE 4975:GOSUB 4845:RESTORE 4975:S1=19:GOSUB 4950:RETURN
4840 Z2$="":RESTORE:GOSUB 4845:RESTORE:S1=19:GOSUB 4950:RETURN
4845 S1=10:S2=13:GOSUB 4930:RETURN
4850 Z2$="":RESTORE:GOSUB 4895:S2=18:GOSUB 4945:RETURN
4855 Z2$="":RESTORE 4975:GOSUB 4895:S2=18:GOSUB 4945:RETURN
4860 Z2$="":RESTORE 4970:GOSUB 4895:S2=18:GOSUB 4945
4865 PRINT AT(18,7);""
4870 PRINT AT(19,7);"":PRINT AT(19,23);""
4875 PRINT AT(20,7);"":PRINT AT(20,23);""
4880 PRINT AT(17,15);"R1":PRINT AT(24,16);"R2"
4885 PRINT AT(22,10);"ZL":PRINT AT(22,20);"ZL"
4890 RETURN
4895 S1=15:S2=9:GOSUB 4930:RETURN
4900 IF X=0 THEN GOSUB 4805:ELSE GOSUB 4810
4905 RETURN
4910 IF X=0 THEN GOSUB 4815:ELSE GOSUB 4820
4915 RETURN
4920 IF X=0 THEN GOSUB 4825:ELSE GOSUB 4830
4925 RETURN
4930 PRINT AT(20,5);STRING$(20,""):PRINT AT(27,5);STRING$(20,"")
4935 PRINT AT(24,4);"Eing.":PRINT AT(24,24);"Ausg."
4940 GOSUB 4945:GOSUB 4950:RETURN
4945 PRINT AT(20,S2);Z2$:RETURN
4950 FOR I=0 TO 5:READ Z1$
4955 PRINT AT(21+I,S1);Z1$:NEXT
4960 PRINT AT(20,S1);"":PRINT AT(27,S1);"":RETURN
4965 DATA "","","","","","
4970 DATA "","","","","",""
4975 DATA "","","","","",""
4980 PRINT "f";X$;"=";F/1000;"kHz":PRINT:RETURN
4985 IF INKEY$<>""THEN 4985
4990 A$=INKEY$
4995 IF A$="" THEN 4990
5000 IF A$="T" THEN CALL -352: RETURN
5005 A=VAL(A$):A1=ASC(A$)
5010 RETURN
5100!
5105!
5110!
5115!
5120! AKTIVE FILTER
5125!
5130!
5135!
5140!
5145 WINDOW: CLS: WINDOW 15,31,5,31
5150 PRINT AT(0,0);STRING$(32,"x")
5155 PRINT AT(8,0);STRING$(32,"x")
5160 PRINT AT(3,4);"Butterworth Filter"
5165 PRINT AT(5,4);"(Einfach-Mitkopplung"
5170 FOR I=1 TO 7
5175 PRINT AT(I,00);"x"
5180 PRINT AT(I,31);"x"
5185 NEXT
5195 PRINT "Hochpass..........: H":PRINT
5200 PRINT "Tiefpass..........: T":PRINT
5206 PRINT "ENDE..............: E"
5210 PRINT:PRINT "Bitte waehle :";
5215 A$=INKEY$
5216 IF A$="E" THEN RETURN
5225 IF A$<>"H"AND A$<>"T"THEN 5215
5230 WINDOW:CLS:PRINT
5235 INPUT "Grenzfrequenz in Khz :";FG:FG=1000*FG:PRINT
5240 IF FG<=0 THEN 5235
5245 INPUT "Ordnung (1-40) :";OG:PRINT
5250 OG=INT(OG+0.5):IF OG<1 OR OG>40 THEN 5245
5255 INPUT "Eingangs- C1 in nF :";C1:PRINT
5260 C1=C1/1E9
5265 IF C1<=0 THEN 5255
5270 O$="G":IF OG/2-INT(OG/2)>0.1 THEN O$="U"
5275 V=1
5280 IF O$="G"THEN 5305
5285 PRINT "Verstaerkung des Filters :":PRINT
5290 INPUT " ( x-fach ) :";V:PRINT
5295 IF V<=0 THEN 5290
5300 V=ABS(V)
5305 REM BERECHNUNG
5310 N=INT(OG/2):IF O$="U"THEN N=N+1
5315 FOR A=1 TO N
5320 B1(A)=1
5325 IF O$="G"THEN AR(A)=2*COS((2*A-1)*PI/(2*OG))
5330 IF O$="U"THEN AR(A)=2*COS((A-1)*PI/OG)
5335 NEXT A
5340 IF O$="U"THEN AR(1)=1:B1(1)=0
5345 IF A$="H"THEN 5425
5350 XB=1:IF O$="U"THEN XB=2
5355 FOR A=XB TO N
5360 CX=4*B1(A)*C1/(AR(A)*AR(A))
5365 CX=INT(CX*1E12+1)/1E3
5370 CLS
5375 PRINT "Gebe beim";A;" .Operationsverst.":PRINT
5380 PRINT "C2 (in nF) so ein,dass C2 ":PRINT
5385 PRINT "moeglichst nahe am Richtwert":PRINT
5390 PRINT "CX liegt.Dabei muss aber :":PRINT
5395 PRINT "C2>CX .":PRINT
5400 PRINT "CX=";CX;" nF":PRINT
5405 INPUT "C2 ( in nF ) =";C2:PRINT
5410 IF C2<CX THEN PRINT "C2 ist zu klein.":PRINT:GOTO 5405
5415 C2(A)=C2/1E9
5420 NEXT A
5425 IF A$="T"THEN 5490
5430 FOR A=1 TO N
5435 C2(A)=C1
5440 NEXT A
5445 R1(1)=1/(2*PI*FG*AR(1)*C1)
5450 R2(1)=R1(1)*V
5455 IF OG=1 THEN 5485
5460 XB=1:IF O$="U"THEN XB=2
5465 FOR A=XB TO N
5470 R1(A)=1/(PI*FG*C1*AR(A))
5475 R2(A)=AR(A)/(4*PI*FG*C2(A)*B1(A))
5480 NEXT A
5485 GOTO 5540
5490 R2(1)=AR(1)/(2*PI*FG*C1)
5495 R1(1)=R2(1)/V
5500 IF OG=1 THEN 5540
5505 XB=1:IF O$="U"THEN XB=2
5510 FOR A=XB TO N
5515 D=AR(A)*AR(A)*C2(A)*C2(A)-4*B1(A)*C1*C2(A)
5520 NE=4*PI*FG*C1*C2(A)
5525 R1(A)=(AR(A)*C2(A)-SQR(D))/NE
5530 R2(A)=(AR(A)*C2(A)+SQR(D))/NE
5535 NEXT A
5540 REM AUSGABE
5545 C1=C1*1E9
5550 IF O$="U"THEN RF=R1(1)
5555 IF O$="G"AND A$="T"THEN RF=R1(1)+R2(1)
5560 IF O$="G"AND A$="H"THEN RF=R1(1)
5565 CLS
5570 PRINT:PRINT "Gesamtfilter":PRINT
5575 PRINT "Schaltung :",
5580 GOSUB 5810
5585 PRINT
5590 PRINT "Ordnung :";OG:PRINT
5595 PRINT "Grenzfrequenz (khz):";FG/1000:PRINT
5600 PRINT "OPV-Anzahl :";N:PRINT
5605 PRINT "Verstaerkung :";V:PRINT
5610 PRINT "Eingangswiderstand :";RF;"Ohm":PRINT
5615 PRINT "Daempfung (dB/Okt.):";OG*6:PRINT
5620 PRINT "Daempfung (dB/Dek.):";OG*20:PRINT
5625 PRINT:PRINT:PRINT " >ENTER<":PRINT
5630 INPUT "";Q
5635 CLS
5640 IF O$="G"THEN 5710
5645 PRINT:PRINT "Umkehrverstaerker 1.Ordnung":PRINT
5650 PRINT "Schaltung :",
5655 GOSUB 5810
5660 PRINT
5665 PRINT "OPV-Nr. = 1":PRINT
5670 PRINT "R1 =";R1(1);" Ohm":PRINT "
5675 PRINT "R2 =";R2(1);" Ohm":PRINT
5680 PRINT "C1 =";C1;" nF":PRINT
5685 PRINT "C2 =";C2(1);" nF":PRINT
5690 PRINT:PRINT:PRINT " >ENTER<":PRINT
5695 INPUT "";Q
5700 CLS
5705 IF N=1 THEN 5785
5710 XB=1:IF O$="U"THEN XB=2
5715 FOR A=XB TO N
5720 CLS
5725 C2(A)=C2(A)*1E9
5730 PRINT:PRINT "Verstaerker 2.Ordnung":PRINT
5735 PRINT "Schaltung :",
5740 GOSUB 5810
5745 PRINT:PRINT "OPV-Nr. =";A:PRINT
5750 PRINT "R1 =";R1(A);" Ohm":PRINT
5755 PRINT "R2 =";R2(A);" Ohm":PRINT
5760 PRINT "C1 =";C1;" nF":PRINT
5765 PRINT "C2 =";C2(A);" nF":PRINT
5770 PRINT:PRINT:PRINT " >ENTER<":PRINT
5775 INPUT "";Q
5780 NEXT A
5785 CLS
5790 PRINT:PRINT "Neue Berechnung (J/N)":PRINT
5795 IF INKEY$<>"" THEN 5795
5800 Q$=INKEY$:IF Q$=""THEN 5800
5805 IF Q$="J"THEN 5100:ELSE RETURN
5810 IF A$="H"THEN PRINT "Hochpass"
5815 IF A$="T"THEN PRINT "Tiefpass"
5820 RETURN
